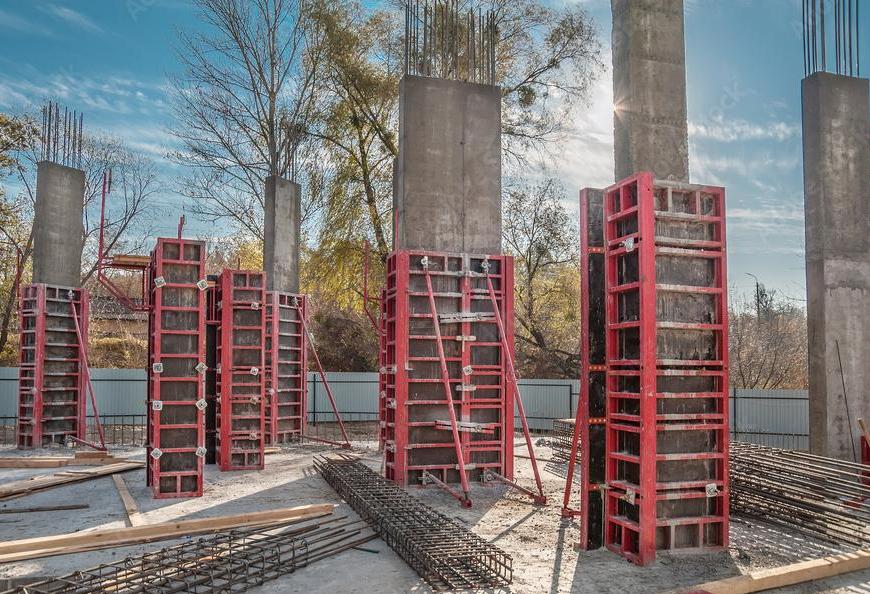

MAUP Adjustable Frame Column Formwork

Feature of MAUP Adjustable Frame Column Formwork

• Efficient assembly method and operations with crane assistance
• Adjustable panels can accommodate all rectangular column sizes with 50mm increments
• Column clamp serves as the only component for all panel connections
• Complete platform kits included, along with transporting wheels
• Easy to clean due to high-temperature powder-coated frame

Specification of MAUP Adjustable Frame Column Formwork

• Formwork panel made from S355 grade steel profile, lined with 12mm TECON-Form birch plywood, depth of 73mm
• Panel widths: 1000mm, 750mm, 600mm, and 250mm; Panel heights: 3000mm, 2700mm, 1800mm, and 1200mm
• Quick and easy column corner connections using column couplers
• Maximum permissible fresh concrete pressure: 80 kN/sqm

Application of MAUP Adjustable Frame Column Formwork

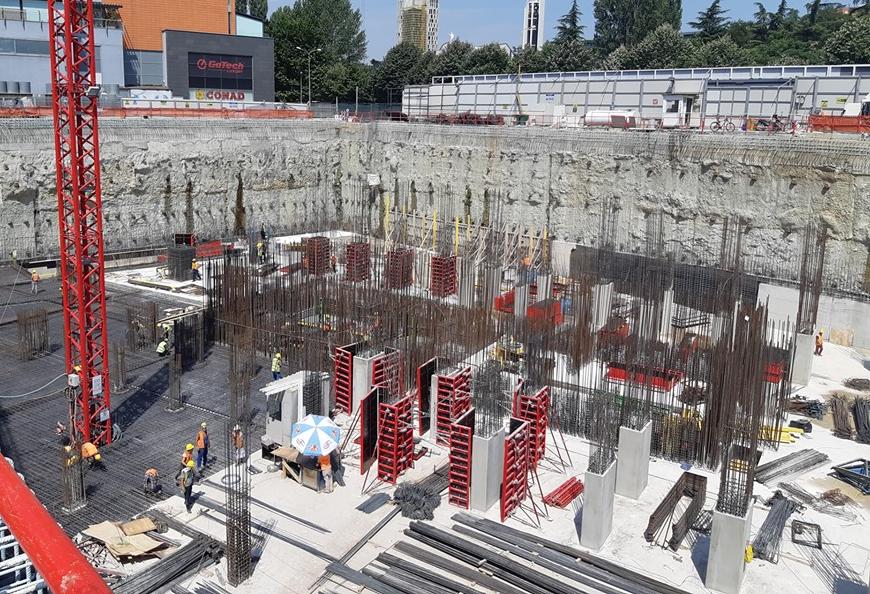

• Suitable for various-sized columns in residential & commercial buildings, infrastructure projects, and more.
