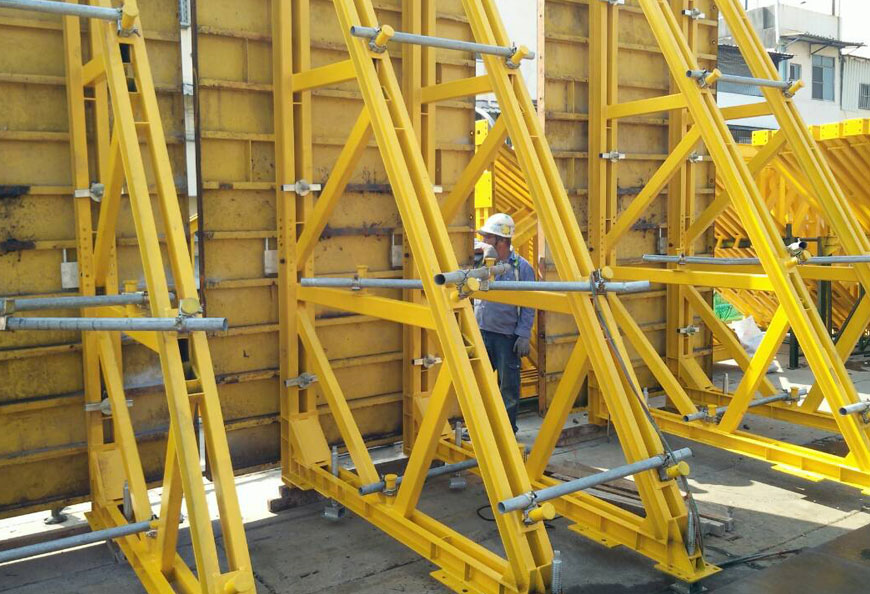

MAUP Single Side Wall Formwork

Features of Single Side Formwork

• Effortless Assembly: Standard frame brackets can be easily and efficiently assembled with the help of a crane.
• Versatile Heights: Both standard and custom frame heights are available to meet project requirements.
• Adaptable Pressure Management: The spacing of the frames can be adjusted to accommodate varying fresh concrete pressures.
• Mobility: The system features cast wheels, allowing for easy movement by the workforce.
• Compatibility: Fully compatible with all MAUP wall formwork systems.

Specifications of Single Side Formwork

• Operational Platform: Equipped with a handrail on top of the bracket for added safety.
• Height Variability: The main support frame sizes determine different wall heights, with a maximum concrete casting height of up to 8 meters in a single pour.
• Frame Heights:
  • Standard Construction Frame Height: 4.0 m
  • Extension Frame A Height: 2.2 m
  • Extension Frame B Height: 1.5 m
• Reinforcement Capability: Can be reinforced with G.I. pipes and couplers between frames for added stability.

Application of Single Side Formwork

Ideal for constructing single side walls in various projects such as metro stations, sewage treatment plants, and other excavation-related projects.
