Features of Plastic Formwork TP60

• Modular Design: This formwork system is easy to assemble, resembling building blocks, and can be quickly set up using an erection handle, requiring no skilled labor.
• Lightweight: Its design allows for easy handling without crane assistance, enhancing mobility on-site.
• Versatile Application: Suitable for modular housing projects, enabling simultaneous pouring for walls and slabs, or sequential casting for walls, columns, and slabs.
• Effortless Cleaning: The panels are designed for easy cleaning, resulting in minimal or no need for plastering after removal.
• Quick Availability: Ready-to-ship stock ensures prompt delivery for project needs.

Specifications of Plastic Formwork TP60

• Material Composition: Made from fresh ABS for durability and strength.
• Panel Dimensions: Maximum panel size of 1200 x 600 mm, weighing just 9.7 kg per piece; additional sizes include 400, 350, 300, and 250 mm widths.
• Reusability: High-strength panels are designed for up to 100 reuse cycles, ensuring cost-effectiveness.
• Height and Thickness: Capable of supporting slab thicknesses up to 300 mm and wall heights of 3.6 m in a single pour.
• Concrete Pressure: Accommodates various fresh concrete pressures, up to 60 kN/m² for walls and 80 kN/m² for columns.
• Compatibility: Suitable for use with foam and lightweight concrete mixtures.

Applications of Plastic Formwork TP60

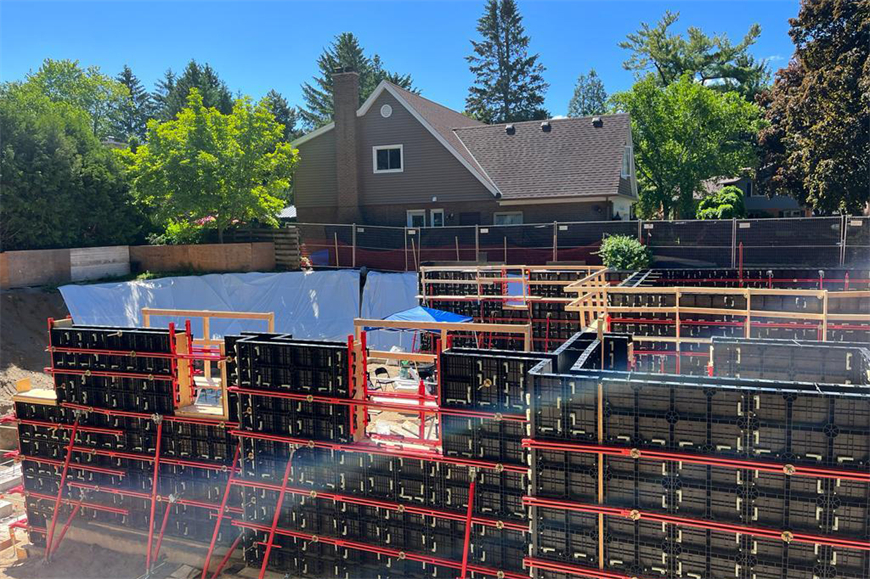

• Ideal for small to medium-sized projects such as row houses, villas, apartments, ground beams, and swimming pools. Particularly beneficial in noise-sensitive environments and coastal areas requiring anti-corrosion properties, as well as in remote locations where heavy machinery is impractical.
