Shoring Tower TST60

Features of Shoring Tower TST60

• Quick and Easy Assembly: Designed for rapid setup with minimal components, ensuring user-friendly operation.
• Robust Load-Bearing Capacity: Capable of supporting significant loads while utilizing fewer materials.
• Versatile Shoring Solutions: Accommodates various shoring needs with just two frame heights and adjustable jacks.
• Long-Lasting Durability: The mainframe features a hot-dip galvanized finish, providing over ten years of service life.
• Enhanced Capacity: Designed for higher shoring applications and compatible with a variety of formwork systems, including TECON Slab Flex 20 and Slab Table.

Specifications of Shoring Tower TST60

• Material Composition: Main frame constructed from S355 steel with outer diameter of 60 mm and wall thickness of 3 mm.
• Load Capacity: Each leg supports a work load of 60 kN at a height of 5 m, with a safety factor of 2.5.
• Maximum Support Height: Capable of reaching support heights up to 30 m.
• Assembly Efficiency: Maximum assembly rate can achieve up to 160 cubic meters per day per person.
• Frame Dimensions: Available in primary sizes of 1.2 x 1.1 m, 1.2 x 1.6 m, 1.5 x 1.1 m, and 1.5 x 1.6 m.
• Basic Shoring Tower Dimensions: Standard dimensions include 1.5 x 1.5 m, 1.5 x 1.2 m, and 1.2 x 1.2 m.
• Stair Tower Size: The basic dimension for the stair tower is 1.5 x 3.0 m.

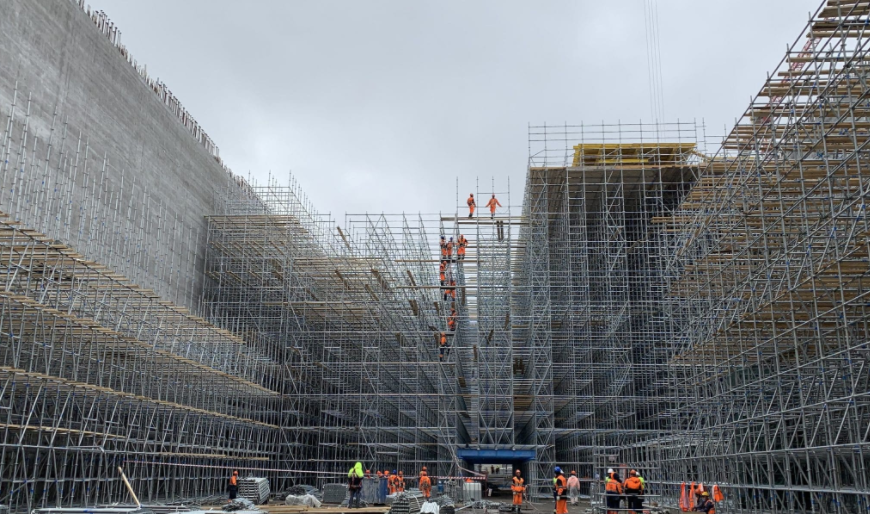

Applications of Shoring Tower TST60

The TST60 is ideal for high shoring and heavy load projects, making it suitable for:

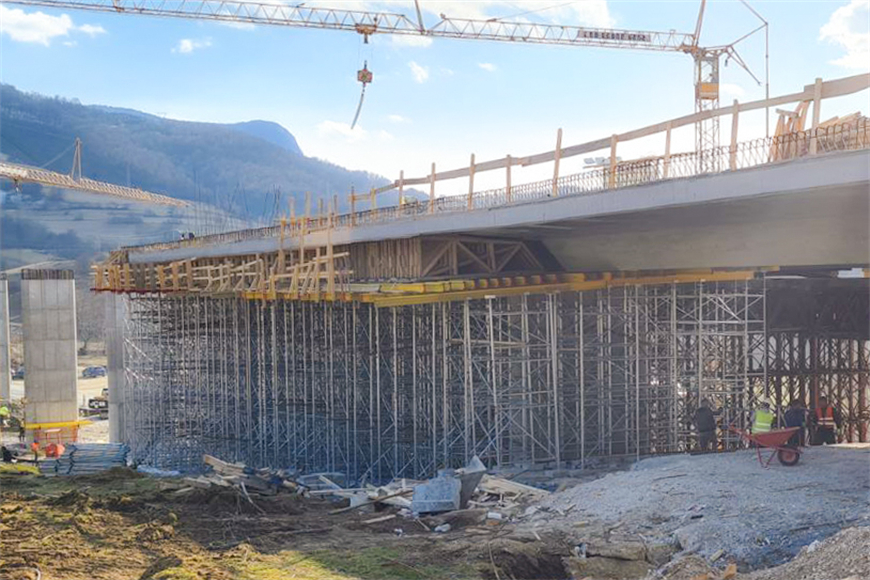

• Bridges
• Flyover roads
• Subways
• Various civil engineering undertakings
