V-shore Frame

V-Shore Frame Scaffolding: A Reliable Shoring Solution for Heavy LoadsThe V-Shore Frame Scaffolding system is a conventional shoring solution designed to support significant loads. It is made up of three primary components: frames, cross braces, and top and base jacks. This straightforward combination allows for quick and efficient assembly and disassembly on construction sites.Key Features:High Load Capacity: Specifically engineered to handle substantial weight, suitable for large construction projects.Effortless ...

V-shore Frame

GET A QUOTE

Features of V-Shore Frame Scaffolding

Low Maintenance Requirements: Designed for durability, ensuring minimal upkeep is needed during future applications.
Compact and Portable: Optimized for easy transportation and efficient storage, making it suitable for various job sites.
Versatile Shoring Heights: Capable of achieving different shoring heights by utilizing frames of varying sizes.
Adjustable Frame Spacing: The distance between frames can be customized with different braces, allowing for a workload capacity of 35.1 kN for each leg.

Specification of V-shore Frame

No.	Items	Size	Description
1	V Shore Frame	12192130(WH)	60*3.5-Q345
2		12191829 (WH)
3		12191524 (WH)
4		12191219(WH)
5		1219914(WH)
11	Cross Brace	1829*914	Q235 / ø27*1.8
12		1829*1219
13		1524*914
14		1524*1219
15		1219*914
16		1219*1219
17	Fork Head Jack	L=800	Q235 / M50*4 / Cast steel nut
18	Base Jack	L=800	Q235 / M50*4 / Cast steel nut
19	Base Plate	L=150	M50*4

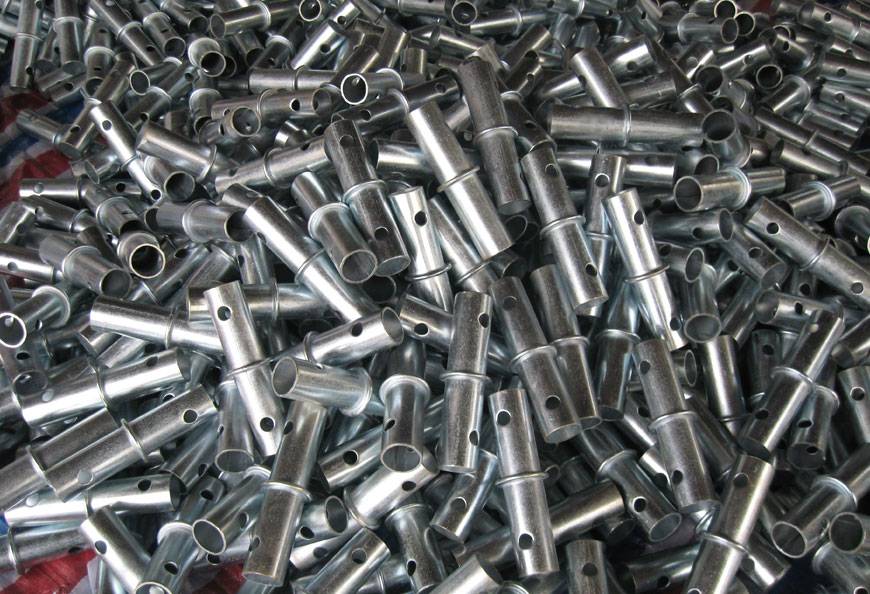

20	Connector #1	/	ø48*3

Application of V-shore Frame

Residential and commercial buildings, bridges, and other heavy slabs or beams.
